How to Choose a Vacuum Molding Machine?

Choosing a vacuum molding machine is not simply a matter of comparing heating power, platform size, and price. The right decision depends on material thickness, mold geometry, production volume, and repeatability. A small workshop forming 2 mm ABS sheets needs different controls from an automotive supplier producing deep trays every minute.

Industry data supports careful planning. MarketsandMarkets estimates that the global thermoforming plastics market could grow from approximately USD 15.5 billion in 2023 to USD 20.6 billion by 2028. Grand View Research also identifies automation and efficient material use as important market drivers. These trends make machine selection more technical, especially when energy consumption and cycle stability affect operating costs.

Dr. David Kazmer, a respected polymer-processing researcher, has stated, “Process capability matters more than machine size.” That principle applies directly to every vacuum molding machine purchase. A large heater does not guarantee better parts. Temperature uniformity, vacuum speed, clamping accuracy, cooling performance, and service support often matter more. Hold on. Many buyers overlook the mold-changing time. Ten extra minutes per cycle can quietly damage yearly output.

A practical evaluation should include sample trials with the actual sheet material and mold. Inspect corners, wall thickness, surface detail, trimming accuracy, and warpage. Ask suppliers for measured cycle data, not only brochure claims. Energy figures also need context, because heater ratings rarely equal real consumption. This guide compares machine types, specifications, control systems, maintenance needs, and total ownership costs. It will not promise one universal answer. Vacuum forming is sensitive to small process changes, and the best machine is the one that matches your production reality.

Table of Contents [Hide]

1 Define the Materials and Products the Machine Must Process

2 Compare Vacuum Molding Machine Types and Forming Methods

3 Evaluate Machine Size, Capacity, and Production Requirements

4 Check Heating, Vacuum, Control, and Safety Features

5 Assess Costs, Maintenance, Suppliers, and Long-Term Value

Define the Materials and Products the Machine Must Process

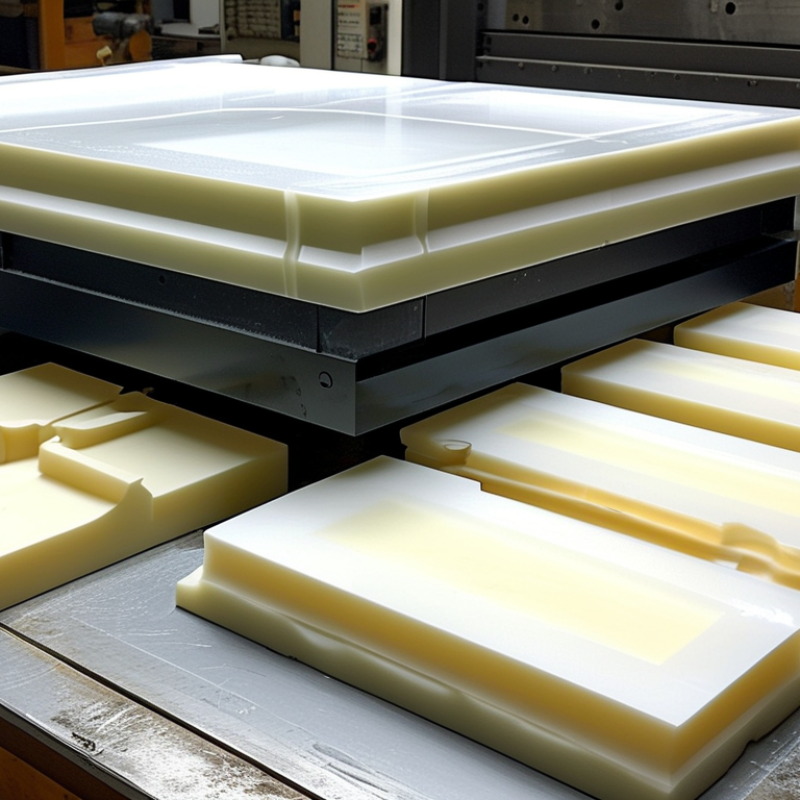

How to Choose a Vacuum Molding Machine?

Define the materials and products before comparing machine specifications. A machine for thin PETG packaging will not perform like one for thick ABS housings. Record each sheet’s thickness, softening range, shrinkage, and recycled content. PlasticsEurope reported global plastics production reached 400.3 million tonnes in 2022, showing the scale of material variation manufacturers must manage. Packaging represented about 40% of European plastics demand, according to the same industry report.

Product geometry matters just as much. Measure the deepest draw, wall angles, corner radii, and required surface finish. A deep tray needs stronger vacuum control and effective plug assistance. Large panels may require more heating zones to prevent cold spots. The product’s cycle time also affects machine sizing. A forming area that looks sufficient on paper may create uneven walls during real production. I have seen small design details change the machine decision.

Tips:

Build a material-product test sheet. Include thickness, mold dimensions, target cycle time, and acceptable wall variation. Test actual production material, not only a supplier sample. The Society of Plastics Engineers notes that thermoforming performance depends strongly on temperature control and sheet behavior. Do not ignore trimming. Poor clamping or inconsistent heating can create waste before forming begins. ASTM testing guidance can support repeatable checks, but factory conditions still differ. That gap deserves honest review.

Compare Vacuum Molding Machine Types and Forming Methods

How to Choose a Vacuum Molding Machine?

Choosing a vacuum molding machine starts with the part, not the machine size. Consider sheet thickness, material type, surface detail, annual volume, and acceptable cycle time. A single-station machine suits prototypes, replacement parts, and small production runs. It gives operators direct control over heating, sheet loading, and demolding. Production stays slower. Rotary machines improve output by moving several stations through heating, forming, and cooling. Continuous systems can deliver higher volumes, but they need stable material supply, accurate temperature control, and more floor space.

The forming method also changes the result. Standard vacuum forming pulls heated plastic against a mold using negative pressure. It is economical and works well for trays, covers, and shallow housings. Pressure-assisted forming adds compressed air above the sheet. This method captures sharper corners and finer textures, especially when vacuum alone leaves soft details. Twin-sheet forming creates two shells and joins them around the edges. It can produce hollow panels, but alignment and sealing require careful setup. Details matter.

In production trials, I have found that a faster machine is not automatically better. Check heater zoning, vacuum-pump capacity, cooling time, mold ventilation, and control repeatability. Ask for a trial using your actual sheet and mold. Watch for webbing, uneven wall thickness, and incomplete corners. These defects may come from poor temperature settings rather than weak equipment. A reliable selection balances forming quality, maintenance access, operator skill, and realistic production volume. Mine is an imperfect rule: leave room for process changes.

Evaluate Machine Size, Capacity, and Production Requirements

Choosing a vacuum molding machine starts with the parts you actually produce. Measure the longest, widest, and deepest components. Include trimming space around each mold. A machine that barely fits today may restrict future tooling changes.

Check the forming area, platen dimensions, and maximum mold height. Capacity also includes clamping performance, heating power, vacuum strength, and cooling speed. These figures affect cycle consistency, not just maximum output. In production trials, I compare the machine’s rated capacity with real materials and mold weights. Published specifications can look impressive. Actual results may differ.

Estimate hourly demand from confirmed orders, not optimistic forecasts. Record cycle time, loading time, cooling time, and operator movement. Then calculate the required output per shift. Leave practical allowance for cleaning, setup, inspection, and minor delays. A machine running at full capacity all day may create unstable quality and excessive maintenance. I once underestimated unloading time by several seconds per cycle. That small error changed the staffing plan. Choose controls that operators can adjust and verify easily. Review power supply, floor space, ventilation, and service access before installation. A compact machine may save space but limit mold size later. A larger model may waste energy if production remains low. Evaluate both current needs and realistic growth.

How to Choose a Vacuum Molding Machine? - Evaluate Machine Size, Capacity, and Production Requirements

Machine Category	Typical Forming Area	Suitable Sheet Size	Typical Forming Depth	Recommended Sheet Thickness	Typical Output Capacity	Recommended Production Volume	Common Applications
Compact benchtop	Up to 300 × 400 mm	300 × 400 mm or smaller	Up to 120 mm	0.5–3.0 mm	Approximately 10–30 parts/hour	Prototypes, samples, and low-volume production	Product models, packaging inserts, laboratory components, and educational projects
Small automatic	400 × 600 mm	450 × 650 mm or smaller	Up to 180 mm	0.5–4.0 mm	Approximately 20–60 parts/hour	Small batches and regular custom orders	Protective trays, retail packaging, equipment covers, and interior trim parts
Medium production	600 × 900 mm	650 × 950 mm or smaller	Up to 250 mm	0.8–6.0 mm	Approximately 30–100 parts/hour	Continuous small-to-medium production	Automotive trim, machine housings, reusable transport trays, and appliance components
Large production	900 × 1200 mm	950 × 1250 mm or smaller	Up to 350 mm	1.0–8.0 mm	Approximately 40–140 parts/hour	Medium-to-high volume manufacturing	Large panels, industrial enclosures, vehicle components, and sanitary products
Extra-large production	1200 × 2000 mm or larger	1250 × 2050 mm or smaller	Up to 500 mm	1.5–10.0 mm	Approximately 30–120 parts/hour	Large-format and high-capacity industrial production	Transportation panels, large equipment covers, spa shells, and construction components

Evaluation Dimension	Practical Selection Metric	Typical Planning Range	How It Affects Machine Selection
Required forming area	Maximum finished-part footprint plus trimming allowance	Add approximately 10–20% to the part envelope	The forming area should accommodate the part, mold frame, spacing, and material clamping area without excessive sheet waste.
Forming depth	Vertical distance from the sheet plane to the deepest point of the mold	Common equipment ranges: 120–500 mm	Deep parts may require greater machine clearance, pre-stretch capability, plug assistance, or a larger sheet size.
Sheet thickness	Minimum and maximum thickness of the planned material	Approximately 0.5–10.0 mm, depending on equipment	Thicker sheets need higher heating capacity, stronger clamping, longer heating times, and adequate forming pressure.
Material compatibility	Thermoplastic type and processing temperature	Common materials include ABS, HIPS, PETG, PVC, PP, PE, and acrylic	Heating zones and temperature control should match the material’s softening and forming range.
Vacuum performance	Vacuum level, pump displacement, and evacuation time	Typical operating vacuum: approximately 0.6–0.9 bar below atmospheric pressure	Adequate vacuum capacity helps reproduce fine details and reduces forming defects, especially on larger or deeper parts.
Heating system	Heater power, heating zones, and temperature uniformity	Multiple independently controlled zones are preferred for large sheets	Uniform heating improves wall-thickness distribution and reduces warping, under-forming, and localized overheating.
Cycle time	Loading, heating, forming, cooling, and unloading time	Often approximately 2–10 minutes per cycle	Shorter cycles increase hourly output, but cooling and material thickness may limit the achievable production rate.
Production volume	Required parts per shift, day, or month	Prototype, low-volume, medium-volume, or continuous production	Higher volumes justify automatic sheet loading, automatic mold changeover, faster cooling, and process monitoring.
Available floor space	Machine footprint plus operator access and service clearance	Allow additional space around the machine for loading, maintenance, and material handling	The machine must fit the facility without restricting safe operation, ventilation, inspection, or maintenance access.
Electrical and utility capacity	Connected electrical load, voltage, compressed air, and ventilation	Verify requirements from the machine’s technical specification before installation	Large heaters and vacuum systems may require three-phase power, dedicated circuits, exhaust ventilation, or compressed air.
Automation level	Manual, semi-automatic, or fully automatic operation	Choose according to labor availability and repeatability requirements	Automation can improve consistency and throughput, while manual systems usually offer lower initial cost and greater flexibility.
Tooling and mold compatibility	Mold dimensions, mounting method, venting, and changeover time	Confirm that existing and planned molds fit the machine table and frame	Compatible tooling reduces setup time and avoids costly modifications to molds, frames, or vacuum connections.

Planning figures are general industry reference ranges rather than brand-specific specifications. Actual output depends on material, sheet thickness, part geometry, mold design, heating method, cooling time, operator workflow, and machine settings.

Check Heating, Vacuum, Control, and Safety Features

How to Choose a Vacuum Molding Machine?

Choosing a vacuum molding machine starts with its heating system, not its advertised forming size. Inspect the heater layout, temperature range, and heat distribution across the sheet. Infrared heaters can warm plastic quickly, but uneven zones may leave thin corners or dull surfaces. Ask for a sample run using your actual material and thickness. Watch the sheet sag. It tells you more than a brochure.

The vacuum system needs practical strength and stable timing. Check pump capacity, tank volume, valve response, and sealing quality around the mold. A strong pump is not enough if air leaks through worn gaskets. During a trial, measure forming time and inspect corners, ribs, and deep areas. The control panel should show temperature, vacuum level, cycle time, and alarms clearly. Recipe storage helps repeat production, although operators still need training. Automation can hide mistakes.

Safety features deserve a hands-on inspection. Look for emergency stops, guarded hot zones, overload protection, and automatic shutdown after abnormal vacuum or temperature readings. Controls should prevent unsafe access during heating and clamping. Confirm that manuals explain maintenance, grounding, and replacement intervals clearly. I prefer simple controls over crowded screens when workers wear gloves. That is not always fashionable. Check noise, cleaning access, and service space before installation. A machine may perform well in a demonstration, yet frustrate staff every day if basic access is poor. Choose evidence, not promises.

How to Choose a Vacuum Molding Machine?

Check Heating, Vacuum, Control, and Safety Features

Use this practical evaluation framework to compare vacuum molding machines. Heating performance affects forming quality and cycle stability, while vacuum capability determines how accurately the sheet follows the mold. Control systems should provide repeatable temperature, pressure, and timing settings. Safety features, including door interlocks, emergency stops, and over-temperature protection, are essential for reliable operation.

Assess Costs, Maintenance, Suppliers, and Long-Term Value

How to Choose a Vacuum Molding Machine?

Purchase price is only the visible cost. Compare mold capacity, heating power, cycle time, labor needs, energy use, and installation expenses. A cheaper machine may consume more electricity or require frequent manual adjustments. The U.S. Department of Energy’s Operations & Maintenance Best Practices Guide reports that preventive maintenance can reduce maintenance costs by 12–18%. That figure makes service access a financial issue, not merely a technical detail.

Inspect the pump. Check oil replacement intervals, filter availability, heater calibration, and control-system diagnostics. Ask suppliers for maintenance schedules, spare-part lead times, operator training, and written service response times. Request a sample cycle using your actual material and mold. The result may expose uneven heating, slow vacuum recovery, or excessive trimming waste. These details matter more than an impressive brochure specification.

Calculate total cost over five to ten years. Include downtime, rejected sheets, energy consumption, technician visits, and eventual upgrades. A 2023 report from the International Energy Agency shows that industrial energy efficiency remains a major route to reducing operating costs, although machine-level savings depend on usage and process control. Do not accept every projected saving without measurement. Require performance data from comparable applications, then verify it during acceptance testing. Long-term value comes from stable output, accessible maintenance, and a supplier that remains responsive after installation.
